Timber-Aluminium Windows

HF 520 Timber-Aluminium Windows

HF 520 timber-aluminium windows feature a unique modern and flush design. In traditional window systems, the glass unit is enclosed in a sash frame. With the innovative glass sash of the HF 520, the frame is not visible from the outside, giving the appearance of fixed glazing. The slim frame allows for an abundance of natural light to fill your home.

Thermal Insulation (in W/m2K):

Uw up to 0.71

Sound Reduction (in dB):

35-47

Security:

Secured by Design & PAS 24

More Info

This product can easily be combined with the uPVC – aluminium window KF 520, giving you the choice of material inside, with the same aluminium cladding on the outside, creating a uniform, seamless appearance externally. These HF 520 timber-aluminium windows can be personalised with a range of colours to match any home or new build property. Boasting sound reduction capabilities of 35-47 dB, these triple glazed windows will minimise noise pollution and improve privacy. Compliant with the PAS 24:16 security test, rest assured that our triple glazed windows are designed with your safety in mind. Contact us today to learn about the pricing of our HF 520 timber-aluminium windows.

Technical Specifications

Dimension (in mm)	Opening Versions	Gaskets
Frame construction depth 90	Fixed	Quantity 3
View width frame/sash 114	Turn and turn/tilt	Colour Multiple options
View width flying mullion (2 sashes) 134	Tilt
View width transom/mullion (2 sashes) 173	Sliding window
	Lockable doors
	Sliding doors
	Doors with threshold
	Outward opening doors

Features & Benefits

Security and Stability

Our HF 520 timber-aluminium windows are sure to keep any property secure with concealed locks and RC2 protection from intruders or burglars. Fully compliant with PAS 24:16 security standards, these windows will give you complete peace of mind.

Heat Insulation

Designed with thermal insulation in mind, our HF 520 timber-aluminium windows include highly insulating thermal foam as well as externally positioned weather resistant aluminium. Triple continuous gaskets will prevent rain from entering the property.

Intelligent Design

Our HF 520 timber-aluminium windows contain a number of innovative features including I-tec Glazing. This is a method of all around bonding of the glass pane, which makes your windows extra sturdy and secure.

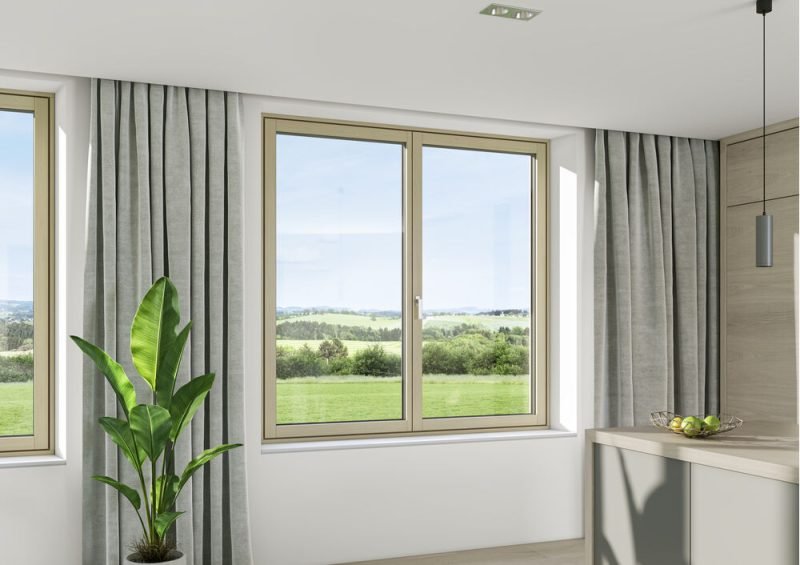

floor to ceiling HF 520 timber aluminium window looking out onto fields

HF 520 Timber Aluminium Window Prices

Use our online contact form to ask us any questions which you have and request a quote for our products. You can call our team of product specialists, based in the Gloucestershire area, on 0800 612 6519. They will be happy to help you with any additional information which you need. You can also book an appointment to visit one of our showrooms. Use the Find A Showroom tool to find the nearest one to you.

Extra Features

Options

These Internorm windows are available in an array of colours and with all manners of hardware and accessories. From handles to locking systems, we have something for every project.

Find Out More

Window Hardware Installers Gloucestershire

Case Studies

Take a look at our case studies to find out more about how our installation process works. You can see how our windows have adapted to fit renovated or extended homes or new build properties.

View All Case Studies

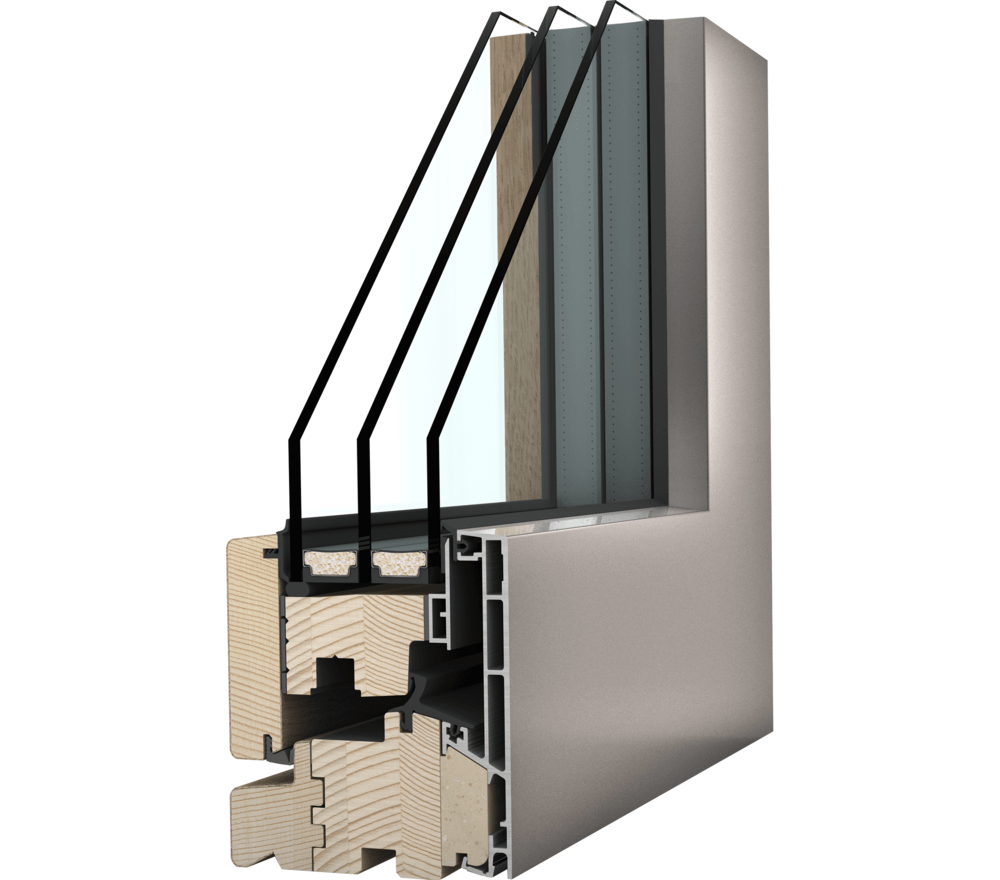

technical image of HF 520 timber aluminium windows

Showrooms

Our showrooms offer you the opportunity to see our products in person and examine small details. Our team of product specialists will be on hand to answer any questions you have or give you specific advice for your project.

View Showrooms
